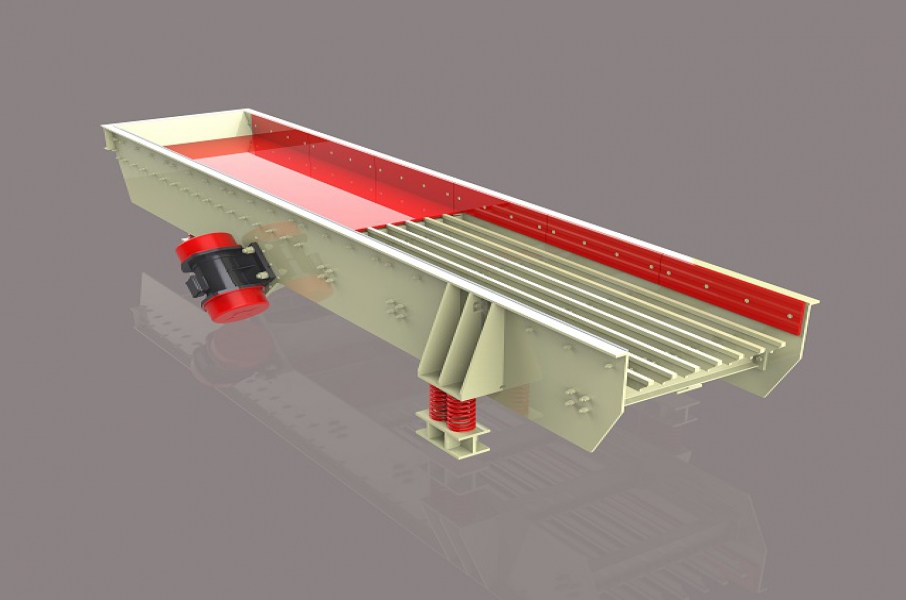

● Product Overview

This product is mainly used for continuous and uniform feeding before the coarse crusher, and can also screen fine materials, increasing the capacity of the crusher. It has the advantages of simple structure, easy installation, stable vibration, reliable operation, long service life, easy maintenance and repair, and easy implementation of automatic control.

[Applicable materials] Used for transporting black or non-ferrous metal ores, building materials; Not suitable for conveying sticky and wet materials

【 Scope of Application 】 Widely used in crushing and screening equipment in industries such as metallurgy, mineral processing, building materials, chemical engineering, abrasives, etc

Production capacity: 96-560t/h

● Working principle of the product

The exciter is composed of two eccentric shafts in specific positions that mesh with gears. During assembly, the two gears must mesh with each other according to the markings, and the two eccentric shafts are driven by a motor to rotate, thereby generating a huge synthesized linear excitation force. The body is forced to vibrate on the supporting spring, and the material is driven by this vibration to slide and throw on the material trough, thereby moving the material forward and achieving the feeding purpose. When the material passes through the sieve strip on the tank, smaller materials can fall through the gap between the sieve strips without going through the next crushing process, thus achieving the screening effect.

● Product advantages

1. It runs smoothly, works reliably, has a long service life, and can provide continuous and uniform feeding for crushing machinery, as well as coarse screening of materials. It is widely used in crushing and screening equipment in mineral processing, building materials, silicates, and chemical industries.

2. It has the advantages of simple structure, easy installation, stable vibration, reliable operation, long service life, easy maintenance and repair, and easy implementation of automatic control;

3. Adopting a dual axis vibrator and linear vibration, the screening process is completed while feeding, which improves the utilization rate of the equipment and reduces costs;

4. It can feed the coarse crusher continuously and uniformly, and simultaneously perform coarse screening on the materials;

5. Optional variable frequency speed motor can be installed to adjust the frequency and change the output, making it easy to control the feeding amount without the need to frequently start the motor.

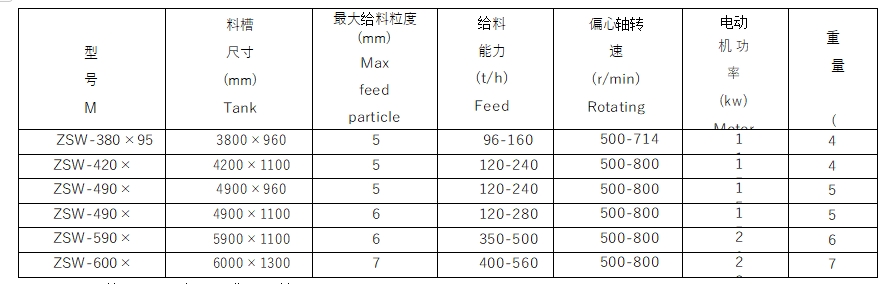

● Product parameters

注：本系列给料机可对物料进行粗筛分。

Note: The series feeder can pre-screen the materials.
