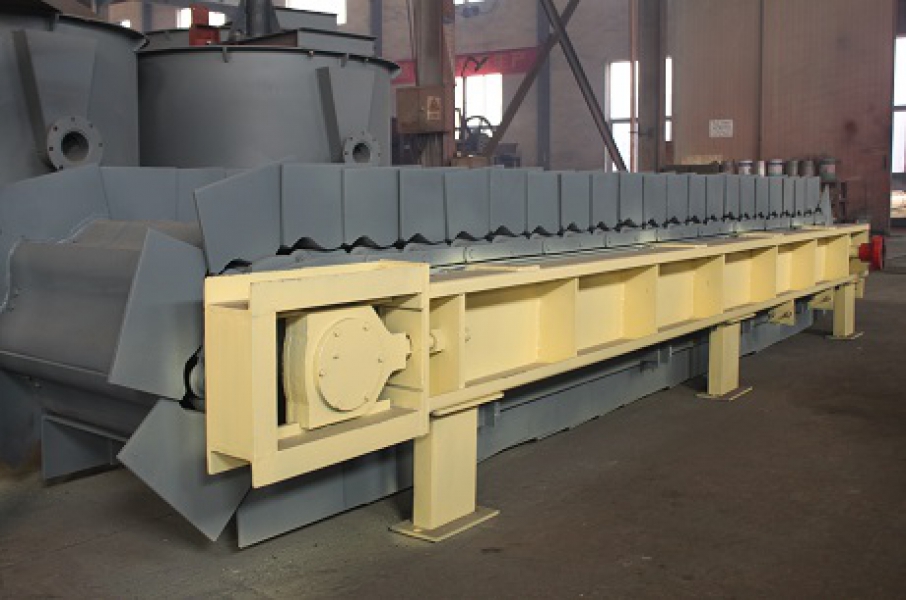

● Working principle of the product

A high-strength forged chain with a pitch of 150mm is used as the traction component. Two chains are connected in a closed loop by winding around a pair of drive sprockets installed at the head of the machine body and a pair of tension wheels installed at the tail of the machine body. Overlapping lightweight transmission grooves are installed on each link of the two rows of chains to form a continuous conveyor line capable of carrying materials. Its self weight and material weight are supported by multiple rows of supporting wheels, chain rollers, and slide beams installed on the machine body. The transmission system is connected to the reducer through an AC variable frequency speed regulating motor, and then the carrier mechanism is driven at low speed by a direct connection between the expansion sleeve and the driving device. Transport the materials unloaded from the tail bin along the conveyor line to the front of the machine body for discharge, achieving the goal of continuous and uniform feeding to the working machinery below.

● Product advantages

The biggest advantage of the product is its strong adaptability, wear resistance, and long service life in harsh environments.

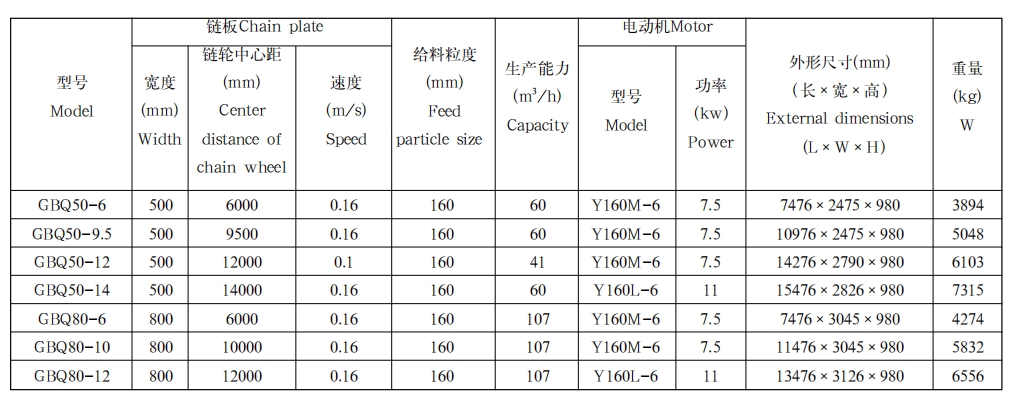

● Product parameters

注：1、本机有左、右传动之分，订货时需要注明。

There are two  drive types:  left drive and  right drive,  and it should  be marked  when ordered.

2、两链轮中心距可按用户要求供货。

The  center  distance  between  the  two  chain  wheels  can  be  adjusted  according  to  the  requirements  of  the  users.
