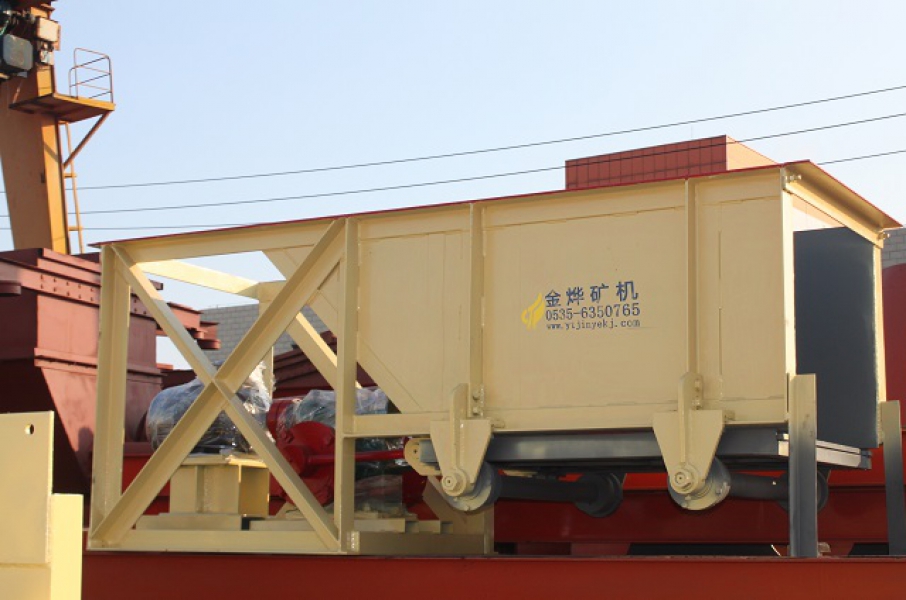

● Product Overview

The trough feeder (also known as the trough feeder) can be installed on the ground or lifted at the discharge port of the ore bin. It moves back and forth through the bottom plate to transport block materials from the storage bin to the receiving device, which is not suitable for conveying materials in powder form

Feeding capacity: 10-90T/H

Maximum feeding force: 50-350mm

【 Scope of application 】 Short distance conveying of block materials with particle size below 160mm

● Working principle of the product

The trough feeder equipment is generally installed at the lower part of the discharge port of the silo, and the ore falls onto the leakage plate at the bottom of the trough. The bottom leakage plate is set on the roller and connected to the reducer of the double output shaft through an eccentric mechanism, and then connected to the motor through a coupling. During operation, the motor drives the reducer through a coupling, and the eccentric disc and the leakage disc between the groove frame bottom and the roller of the equipment move back and forth in a straight line to achieve uniform feeding.

● Product advantages

1. Simple structure, uniform feeding, and good continuous performance.

2. The flow rate can be changed and controlled at any time, and the operation is convenient to adjust the ore feeding amount evenly.

3. Smooth transmission and high transmission efficiency.

4. Compact structure and reasonable design.

5. Excellent quality and versatile use.

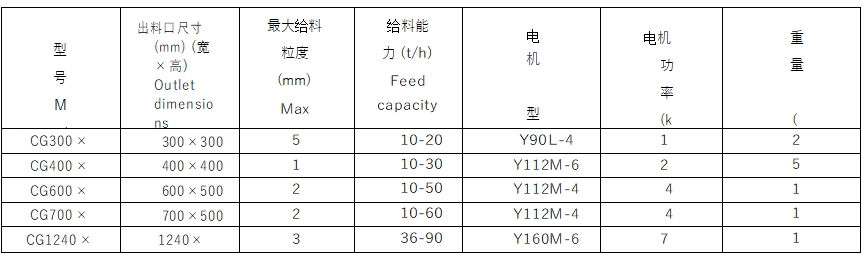

● Product parameters

注:根据用户需要，可将电机改为调速型，以便调整给矿量。

Note:  The  motor  can  be  replaced  by  speed  adjustment  motor  to  adjust  the  feed  ore  amount  according  to  the  user requirements.
