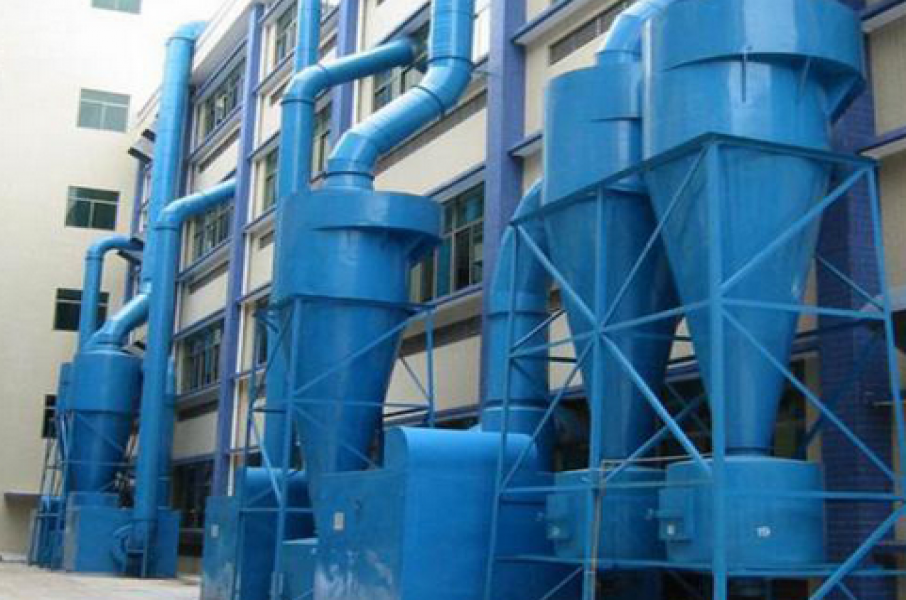

XLP-A type cyclone dust collector:
The XLP-A cyclone dust collector is divided into suction type X-type and press in type Y-type. The X-type and Y-type are further divided into N-type (left turn) and S-type (right turn) according to the different rotation directions of the volute
型号规格 | 外理风量 | 阻力（公斤/米2） | 效率％ | 外型尺寸（长×宽×高） | 重量
（公斤） |
X | Y |
| X | Y | X | Y |
XLP/A～3.0
XLP/A～4.2
XLP/A～5.2
XLP/A～7.0
XLP/A～8.2
XLP/A～9.4
XLP/A～10.6 | 750～1060
1460～2060
2280～3230
4020～5700
5500～7790
750～10650
9520～13500 | 45～90 | 39～79 | 85～99 | 406×390×6125
556×545×2177
711×700×2701
911×910×3489
1371×1605×4050
1226×1222×4616
1376×1337×5157 | 460×390×1380
556×545×1880
711×700×2701
911×910×3040
1071×1605×3540
1226×1222×4050
1376×1337×4545 | 57
99
165
265
364
473
631 | 43
80
128
213
293
384
483 |
