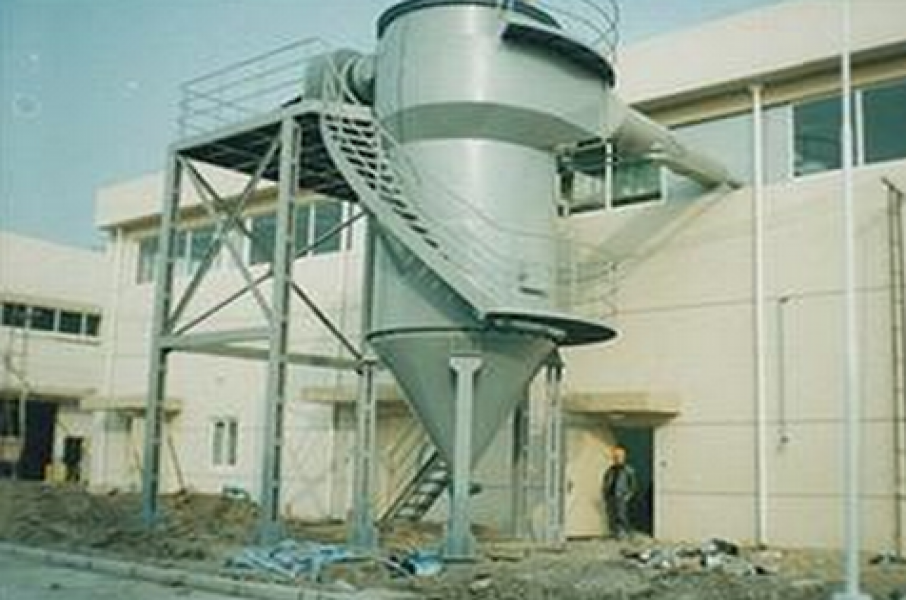

The ZC-II/III mechanical rotary back blowing flat bag dust collector adopts a circular structure with uniform force distribution, good anti explosion performance, compact structure, and high-pressure fan for back blowing and cleaning. It is not limited by gas source conditions and uses resistance to automatically control back blowing and cleaning to save energy and extend the use of bags. It can be installed indoors in cold regions and can be installed outdoors in other regions. It is widely used in industries such as machinery, casting, mining, smelting, building materials, and grain chemical industry.

Users should pay attention to using type A for high temperature, high concentration, and fine particle dust, and type B for the opposite. If the concentration is greater than 15 grams per cubic meter, a first stage cyclone dust collector should be added in front.

技术参数表
