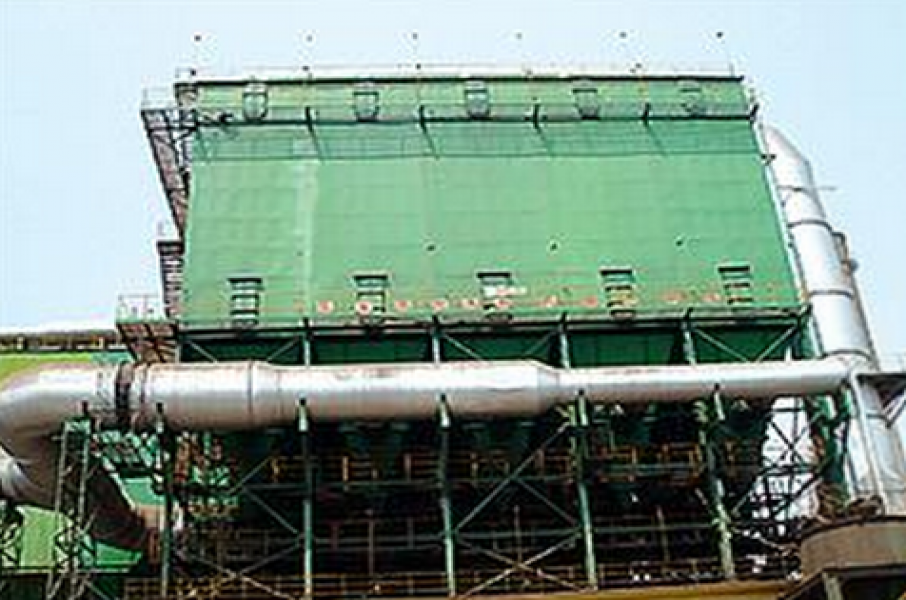

TFC, DFC, and GFC type anti blowing bag dust collectors are chamber circulating anti blowing dust cleaning, downward air inlet, and internal filter dust collectors. Suitable for industries such as metallurgy, chemical engineering, building materials, power, grain processing, machinery, as well as industrial furnaces or boilers, as equipment for purifying dusty gases with a dust concentration of<g/Nm3, particles of 0.1 μ m or more, and a temperature of<260 ℃, the dust removal efficiency can reach over 99.9%. The dust collector is equipped with an advanced automatic program control dust cleaning electric control system, which has the function of automatic monitoring for reverse blowing dust cleaning. In order to debug, maintain, repair, and ensure the continuous operation of the dust removal system, the electronic control system also has a manual dust cleaning function。
技术参数表
型号 | 滤袋数量(个) | 过滤面积(m2) | 过滤风速(米／分) | 风量(m3/h) | 阻力
(Pa) | 外型尺寸(长×宽×高)(m) | 重量(t) |
正压式 | TFC-5200 | 529 | 5200 | ＜1.0 | 312000 | 180-200 | 16.05×8.2×26.3 | 170 |
TFC-7800 | 888 | 7800 | 468000 | 23.85×8.2×26.3 | 240 |
TFC-10400 | 1184 | 10400 | 624000 | 16.05×16.4×26.3 | 310 |
TFC-13000 | 1480 | 13000 | 780000 | 23.85×16.4×26.4 | 380 |
TFC-15600 | 1776 | 15600 | 936000 | 31.65×16.4×26.3 | 450 |
负压式 | TFC-4000 | 448 | 4000 | 240000 | 11.1×15.6×24.8 | 240 |
TFC-6000 | 672 | 6000 | 360000 | 15.65×15.6×24.8 | 240 |
TFC-8000 | 860 | 8000 | 480000 | 20.2×15.6×24.8 | 320 |
TFC-10000 | 1120 | 10000 | 600000 | 24.7×15.6×24.8 | 400 |
TFC-12000 | 1344 | 12000 | 720000 | 29.25×15.6×24.8 | 480 |
GFC-280-4 | 336 | 1120 | 67200 | 7.64×3.647×15.31 | 38.8 |
GFC-280-5 | 420 | 1400 | 84000 | 9.58×3.647×15.30 | 42 |
GFC-280-6 | 504 | 1680 | 100800 | 11.52×3.647×15.16 | 50.26 |
GFC-280-8 | 672 | 2240 | 134400 | 7.64×7.29×15.36 | 63.98 |
GFC-280-10 | 840 | 2800 | 168000 | 9.58×7.29×15.36 | 72.12 |
GFC-280-12 | 1008 | 3360 | 201600 | 11.52×7.29×15.34 | 81.68 |
GFC-230-4 | 264 | 920 | 55200 | 7.64×3.05×15.08 | 36.4 |
GFC-230-5 | 330 | 1150 | 69000 | 9.58×3.05×15.08 | 47.2 |
GFC-230-6 | 396 | 1380 | 82800 | 11.53×3.05×15.8 | 54 |
GFC-230-8 | 528 | 1340 | 110400 | 7.64×5.9×15.08 | 61.2 |
GFC-230-10 | 660 | 2300 | 138000 | 9.58×5.9×15.08 | 67.4 |
GFC-230-12 | 792 | 2760 | 165600 | 11.52×5.9×15.08 | 74.9 |
GFC-140-4 | 160 | 560 | 33600 | 3.75×3.53×15.16 | 25 |
GFC-140-6 | 240 | 840 | 50400 | 5.70×3.53×15.16 | 38 |
GFC-140-8 | 280 | 1120 | 67200 | 7.64×3.53×15.16 | 50.7 |
GFC-140-10 | 320 | 1400 | 8400 | 9.58×3.53×15.16 | 63 |
GFC-140-12 | 480 | 1680 | 100800 | 11.52×3.53×15.16 | 75.7 |
GFC-83-6 | 144 | 498 | 29880 | 4.3×3.5×13.9 | 23.0 |
GFC-83-8 | 192 | 664 | 39840 | 5.64×3.5×13.9 | 30.7 |
GFC-83-10 | 240 | 830 | 49800 | 7.1×3.5×13.9 | 38.4 |
GFC-83-12 | 288 | 996 | 59760 | 11.5×3.5×13.9 | 47.3 |
DFC-6-524 | 152 | 524 | 31400 | ф4000×16140 | 18 |
DFC-3-180 | 52 | 180 | 10800 | ф2340×12480 | 10.86 |
DFC-3-126 | 52 | 126 | 7560 | ф2340×10680 | 9.66 |
DFC-3-80 | 52 | 80 | 4800 | ф2340×9030 | 8.08 |
DFC-2-103 | 30 | 103 | 6180 | ф1808×11406 | 6.1 |
DFC-2-73 | 30 | 73 | 4380 | ф1818×9606 | 5.4 |
DFC-2-45 | 30 | 45 | 2700 | ф1818×7905 | 4.5 |
