Product Introduction:

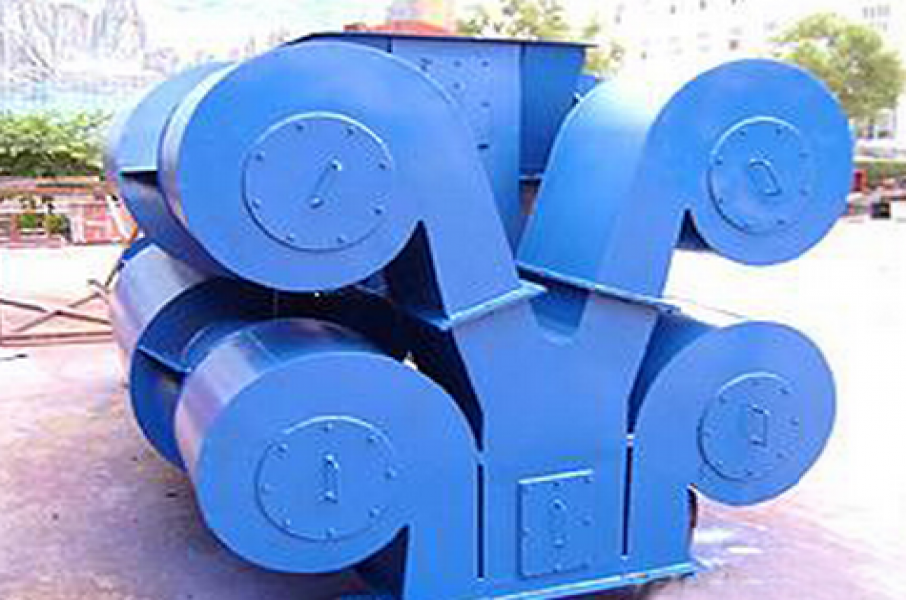

XLP/B type (formerly CLP/B) is a dry cyclone dust collector with a bypass.
2. The XLP/B type is divided into X type (suction type) and Y type (press in type) according to the different positions before and after the fan. The X type adds an outlet spiral shell to the dust collector body. X. Y-shaped is divided into N-type (left rotation) and S-type (right rotation) according to the different rotation directions of the spiral shell.
This dust collector is mainly suitable for removing non stick dust, coal, sediment, smoke and other dust. XLP/B type cyclone dust collector
技术参数表
型号规格 | 进口
风速
m/s | 处理风量
（m3/h) | 阻力
（kg/m2) | 效率
（％） | 外型尺寸
a×b×h(mm) | 重量
( kg） |
X | Y | X | Y |
|
XLP/B～3.0 | 12-27 | 630-1050 | 30-90 | 27-75 | 85-99 | 438×381×1606 | 439×318×1360 | 66 |
XLP/B～4.2 | 1280-2138 | 603×534×2172 | 630×534×1375 | 108 |
XLP/B～5.2 | 2090-3480 | 772×685×2764 | 772×685×2395 | 170 |
XLP/B～7.0 | 3650-6080 | 994×889×3529 | 994×889×3089 | 283 |
XLP/B～8.2 | 5030-8380 | 1167×1040×4110 | 1176×1040×3600 | 374 |
XLP/B～9.4 | 6550-10620 | 1332×1094×4671 | 1332×1194×4110 | 477 |
XLP/B～10.6 | 8370-13980 | 1495×1345×5232 | 1495×1345×4621 | 578 |
