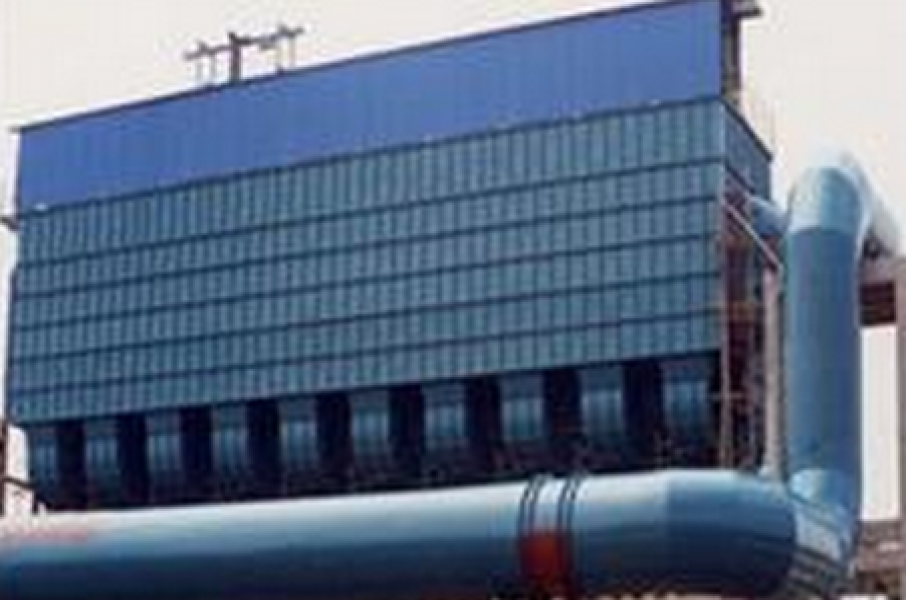

The high-voltage electrostatic precipitator specifically designed for drying machines is a dust collector specifically designed for rotary drying machines in cement plants.
This dust collector is divided into CDLG (H) and CDDK (H) -10/2 models CJHA and CLHB, which are the second and third generation products of CDLG (H) model. They have made significant improvements and enhancements in structure and performance, and are used for wide spacing. Wide spacing electrostatic precipitators are unanimously designated and recognized by countries around the world as advanced and promising dust collectors.
Technical performance of wide spacing electrostatic precipitator for rotary dryer. JG type single tube electrostatic precipitator.
技术参数表
电除尘器型式
技术参数 | CJHA1-2.31/6
CJHB1-2.31/6 | CJHA2-4.62/12
CHJB2-4.62/12 | CJHA3-6.04/12
CJHB3-6.04/12 | CJHA4-6.93/18
CJHB4-6.93/18 |
电场有效断面积m2 | 2.31 | 2×2.31=4.62 | 2×3.20=6.40 | 2×3.47=6.94 |
电场尺寸(长×宽×高)(mm) | 3946×2420×17589 | 7306×2120×17589 | 7606×2650×17615 | 8628×4450×17815 |
处理气体量(m3/h) | 10500 | 21000 | 26000 | 34000 |
电场风速m/S | 1.27 | 1.27 | 1.2 | 1.35 |
气体在电场停
留时间S | 5.54 | 6.46 | 7.07 | 6.03 |
通 道 宽
(一电场/二电场)(mm) | 700 | 700/700 | 800/800 | 700/700 |
通 道 数(一电场/二电场)个 | 6 | 6/6 | 6/6 | 9/9 |
总有效收尘面积(m2) | 79.2 | 158.4 | 181 | 237.6 |
电晕极型式每排根数 | 芒刺×1 | 芒刺×1 | 芒刺×1 | 芒刺×1 |
每电场电晕线有效长度 | 37.2 | 2×37.2 | 2×42.9 | 2×55.8 |
允许高含尘浓度(mg/m3nd) | 30 | 30 | 30 | 30 |
