● Product Overview

The DZS series multi-layer linear vibrating screen utilizes the principle of vibration motor excitation. Under its action, the screen body supported on four compression springs generates continuous linear vibration force, causing the feed material to undergo continuous projectile motion on the screen surface. During the process of encountering the sieve surface, materials smaller than the sieve hole are passed through the sieve to achieve the purpose of classification.

[Scope of Application] Suitable for removing heavy media during dehydration, desliming, liquid-liquid separation, and heavy media beneficiation

Maximum screening area: 1.5x3.6m ²

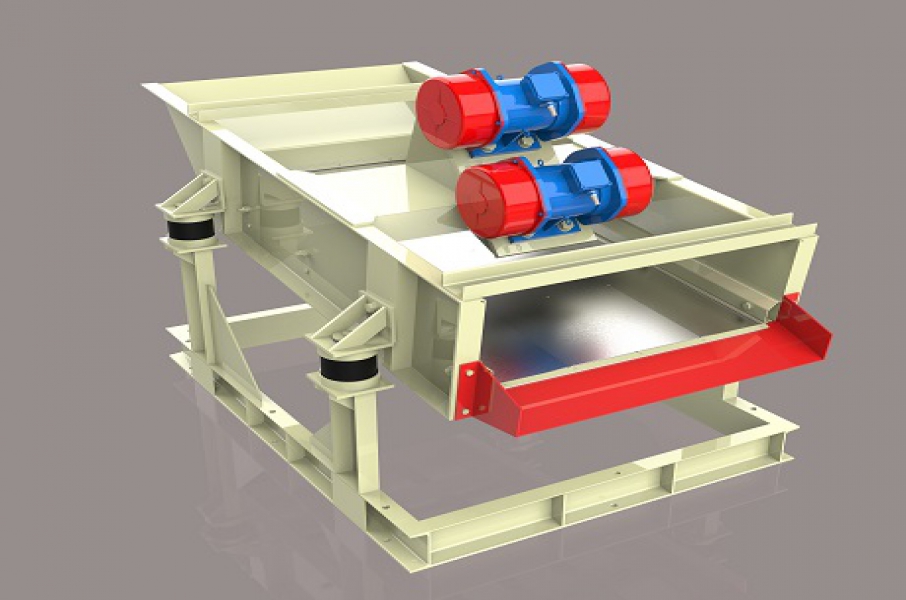

● Product Structure

● Working principle of the product

The linear vibrating screen is driven by dual vibration motors. When the two vibration motors rotate synchronously and in reverse, the excitation force generated by their eccentric blocks cancels each other out in the transverse direction, and the longitudinal excitation force is transmitted to the entire screen surface. Therefore, the motion trajectory of the screen machine is a straight line. The direction of the excitation force is inclined relative to the screen surface. Under the combined force of the excitation force and the self gravity of the material, the material is thrown up on the screen surface and undergoes a jumping forward linear motion, thereby achieving the purpose of screening and grading the material.

● Product advantages

1. The motor power is small, generally only 1/4-1/5 of other types of screens;

2.     . High screening efficiency;

3. The angle of the screening surface can be adjusted;

4. The load transmitted to the foundation is small, and the foundation does not require special treatment;

5. The screen mesh is made of wear-resistant rubber material, which has a long service life.

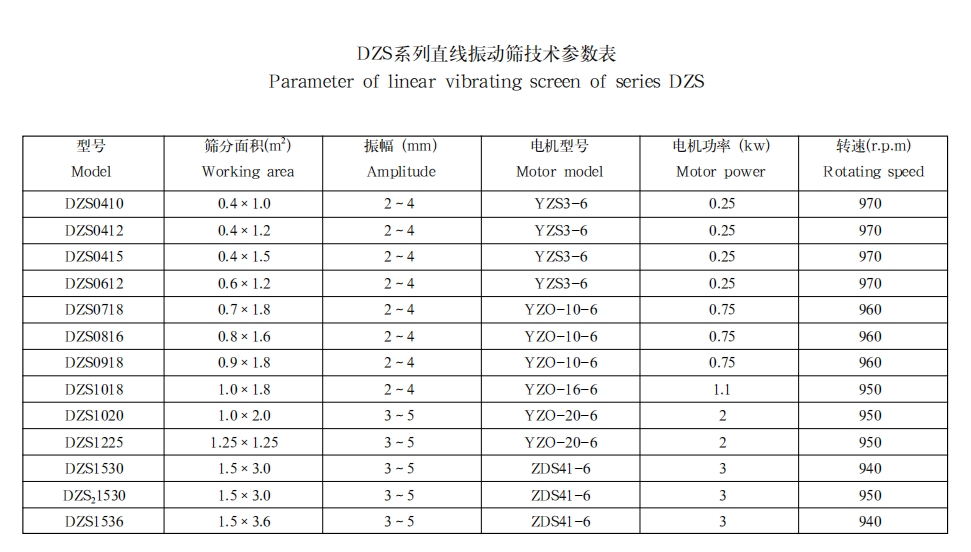

● Product parameters
