● Product Overview

The YA type circular vibrating screen adopts internationally advanced processes and technologies such as ring groove rivets, eccentric shaft and eccentric block vibrators, low stress shock-absorbing springs, ultra heavy large clearance bearings, and thin oil lubrication. It has the advantages of high screen frame structure strength, reasonable mechanical structure, low operating temperature of large clearance bearings, low operating noise, and long service life.

[Applicable Materials] Suitable for coal, limestone, crushed stone, gravel, metallic or non-metallic ores, and other materials

【 Application Field 】 Mainly used for screening fine-grained materials

Production capacity: 1-1700t/h

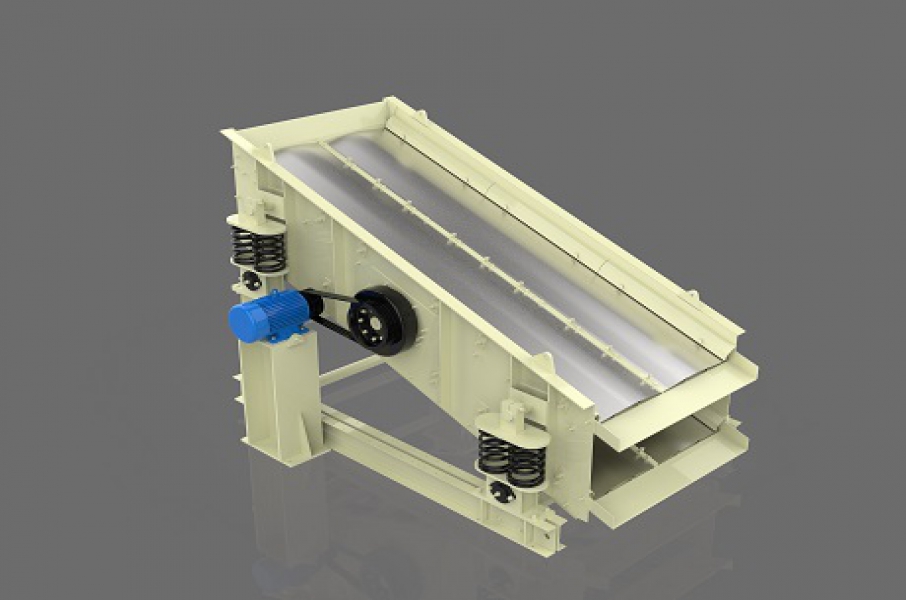

● Product Structure

The circular vibrating screen is mainly composed of a screen box, screen mesh, vibrator, damping spring, bracket, electric motor, etc. The screen mesh is the main vulnerable component. According to the variety of materials and user requirements, high manganese steel woven mesh and polyurethane mesh can be used. The sieve plate is divided into single-layer, double-layer, and multi-layer, and there are light and heavy types; The electric motor can be installed on the left or right side.

● Working principle of the product

The vibrator is installed on the side plate of the screen box and is driven to rotate by an electric motor through a V-belt, generating centrifugal inertia force that forces the screen box to vibrate.

● Product advantages

1. Adopting an eccentric shaft and eccentric block vibrator, the operation is smooth and the screening efficiency is high

2. Adopting low stress damping springs, with low operating noise

3. Adopting ultra heavy large clearance bearings, with low operating temperature and long service life

4. Adopting ring groove rivets and plate type screen box frame structure, the screen frame structure has high strength

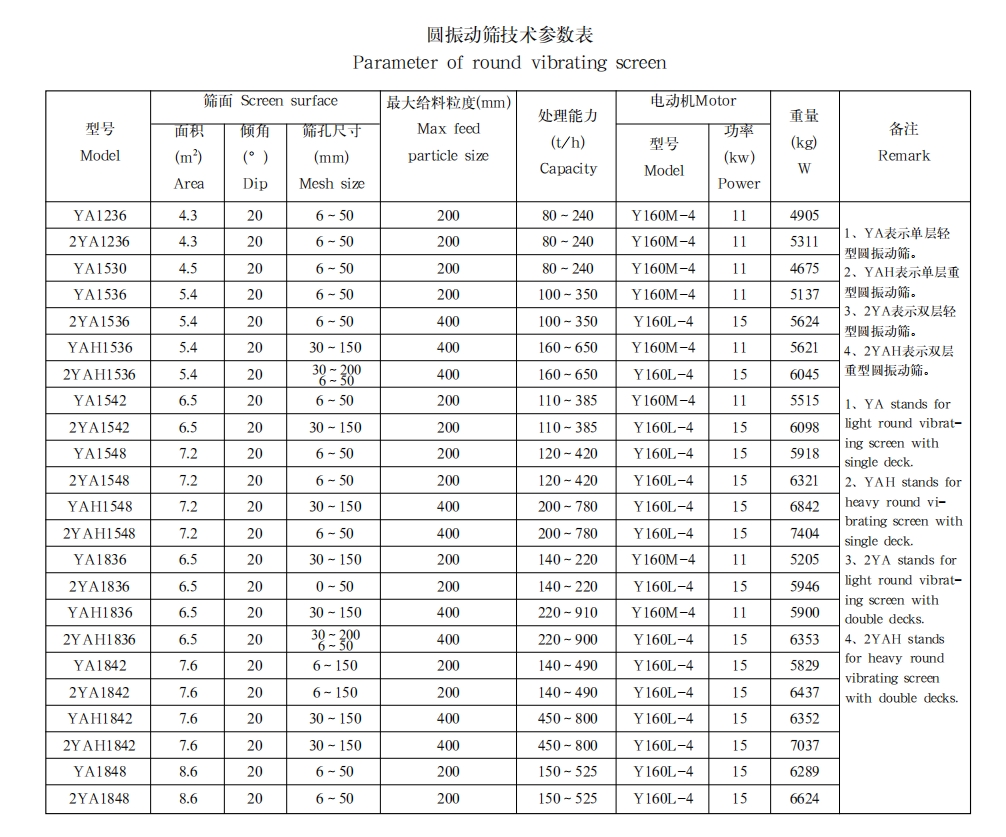

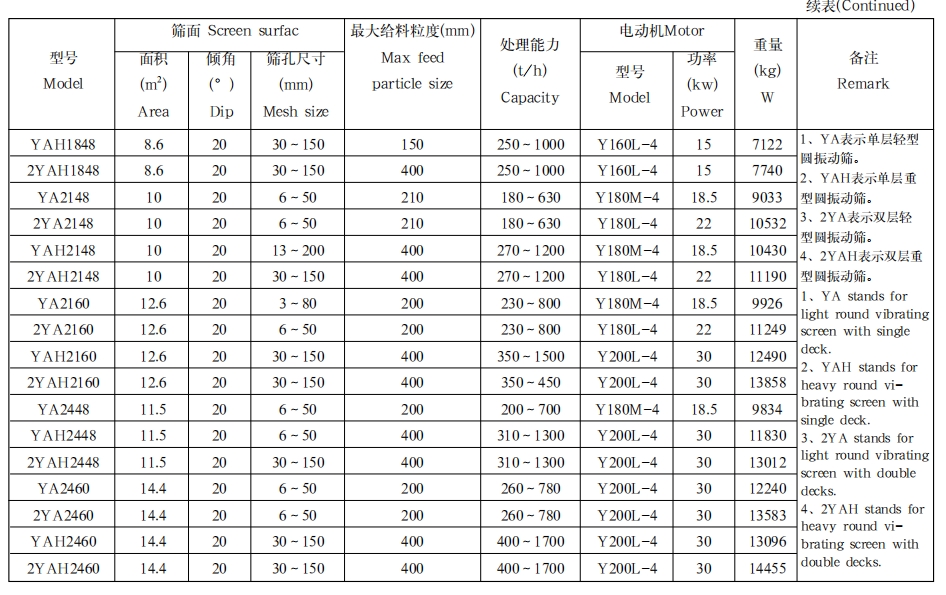

● Product parameters
