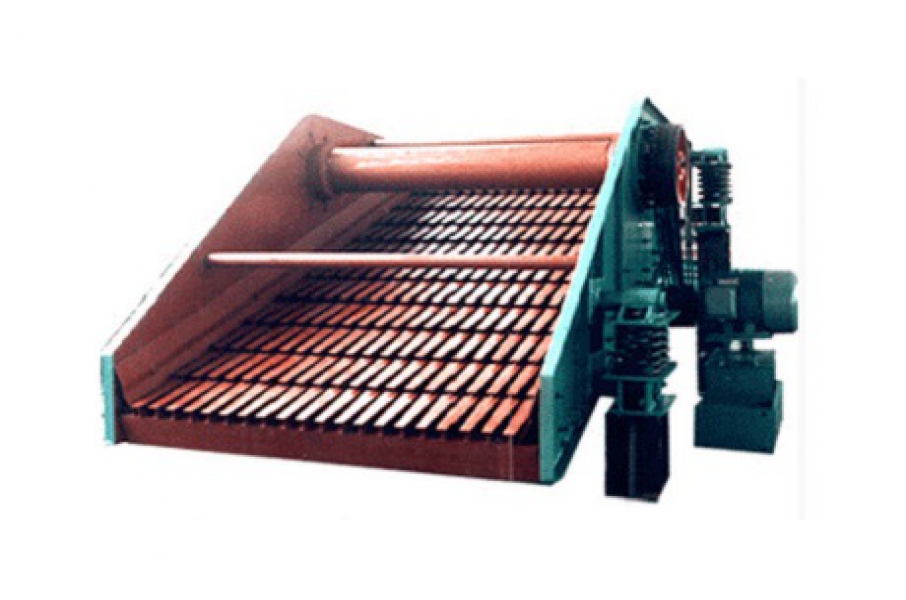

● Product Overview

ZD mining single axis vibrating screen, also known as coal single axis vibrating screen, is a vibrating screen that moves in a circular motion. It can be used for auxiliary or independent screening operations in black, non-ferrous, and non-metallic mines for medium particle size classification. The ZD series mining single axis vibrating screen coal single axis vibrating screen is suitable for the classification of medium and fine particles in industries such as coal, mining, building materials, light industry, and chemical industry. The single axis screen has a circular motion trajectory and has the advantages of simple structure, convenient maintenance, and reliable operation.

【 Scope of Application 】 It is mainly used for grading medium and fine-grained materials in mining, coal, metallurgy, building materials, chemical and other departments. It can also be used for dehydration, desilting and desliming of materials.

[Applicable Materials] Suitable for the classification of medium and fine particles in industries such as coal, mining, building materials, light industry, and chemical industry

Production capacity

● Product Structure

● Working principle of the product

The single axis vibrating screen machine consists of a screen box, a vibration motor, a vibration reduction system, and a chassis; The screen box of a single axis vibrating screen consists of a screen frame, screen plate, lining plate, etc. The screen box of the single axis vibrating screen relies on two identical vibration motors to rotate in opposite directions in self synchronization, causing the entire screen machine supported on the shock absorber to vibrate in a straight line. After the material falls into the screen box from the feeding end, it quickly advances, loosens, and passes through the screen, completing the screening operation.

● Product advantages

1. The single axis vibrating screen can provide Xinhai rubber mesh, with a lifespan 10-20 times that of steel and 4-6 times that of polyurethane.

2. The single axis vibrating screen can provide Xinhai rubber springs with long service life, low noise, and smooth passage through the resonance zone.

3. The single axis vibrating screen has a simple structure and is easy and fast to maintain.

4. Large amplitude, high screening efficiency.

5. The vibrator is easy to disassemble, maintain, and replace as a whole, greatly reducing the maintenance cycle.

6. The single axis vibrating screen vibrator adopts a bearing lubrication with thin oil and an external block eccentric structure. It has the characteristics of high excitation force, low bearing load, low temperature, and low noise

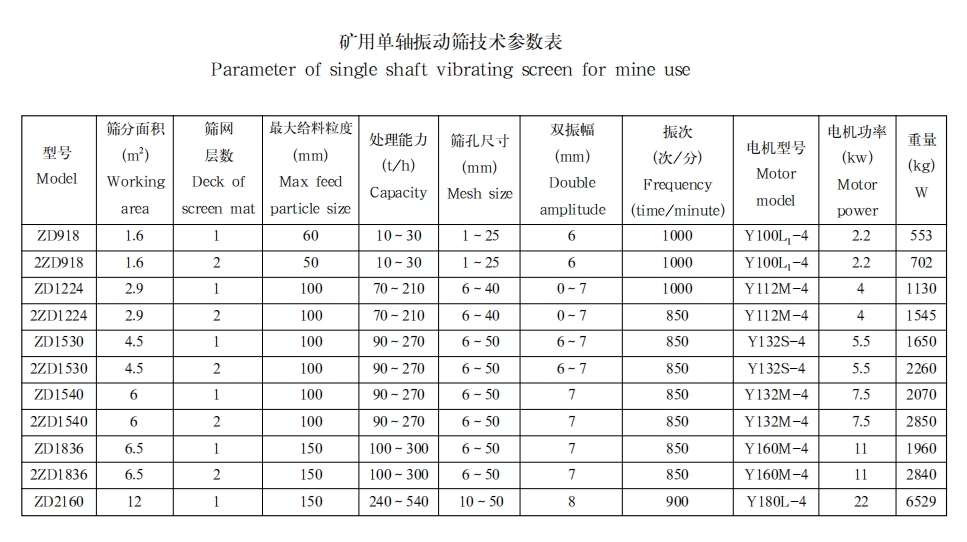

● Product parameters
