● Product Overview

This product is mainly suitable for conveying materials such as building materials, cement, coal powder, coal ash, fertilizers, and grains. It can also be used for production needs such as metallurgy, chemical engineering, and electricity, and is used for conveying granular, powdery, and small block materials.

【 Applicable Materials 】 Mainly used for conveying granular, powdery, and small block materials

【 Conveying Capacity 】 0.45-416.4m ³/h

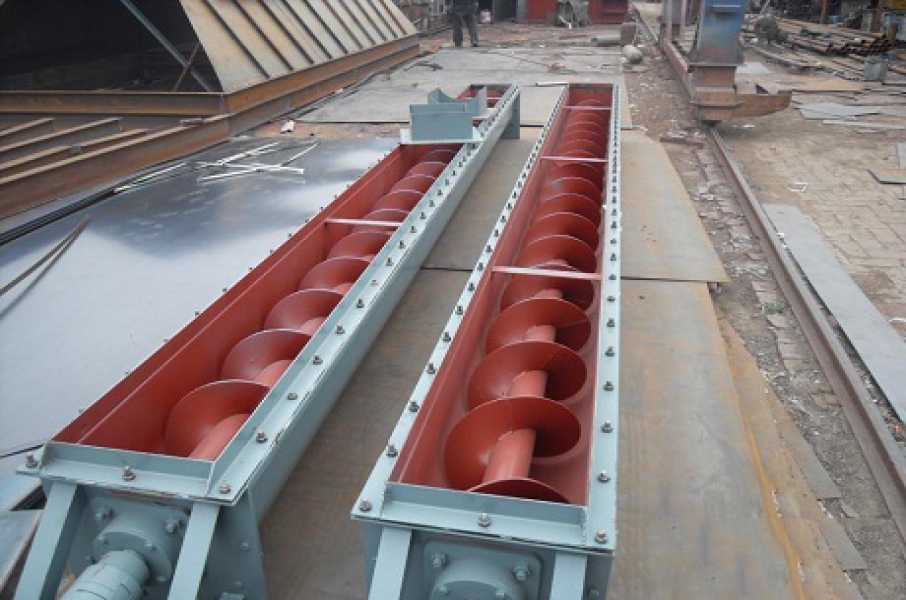

● Product Structure

● Working principle of the product

The LS type screw conveyor uses a rotating screw to move the conveyed material along a fixed casing for conveying work. The head and tail bearings move outside the casing, and the suspension bearings use sliding bearings with dust-proof sealing devices. The bearing shells are generally made of powder metallurgy, and the conveying cement uses felt bearing shells. The suspension shaft and screw shaft are connected by sliding blocks.

● Product advantages

The discharge end is equipped with a cleaning device, and the layout of the inlet and outlet positions is flexible; Novel structure, with the head and tail bearings moved outside the shell; The intermediate suspension bearing adopts a rolling and sliding interchangeable structure, equipped with a dust-proof sealing device. The sealing element is made of nylon, which has low resistance, strong sealing performance, and good wear resistance. Compared with other conveying equipment, it has the advantages of small cross-sectional size, simple structure, good sealing performance, multi-point loading and unloading in the middle, convenient and safe operation, and low cost.

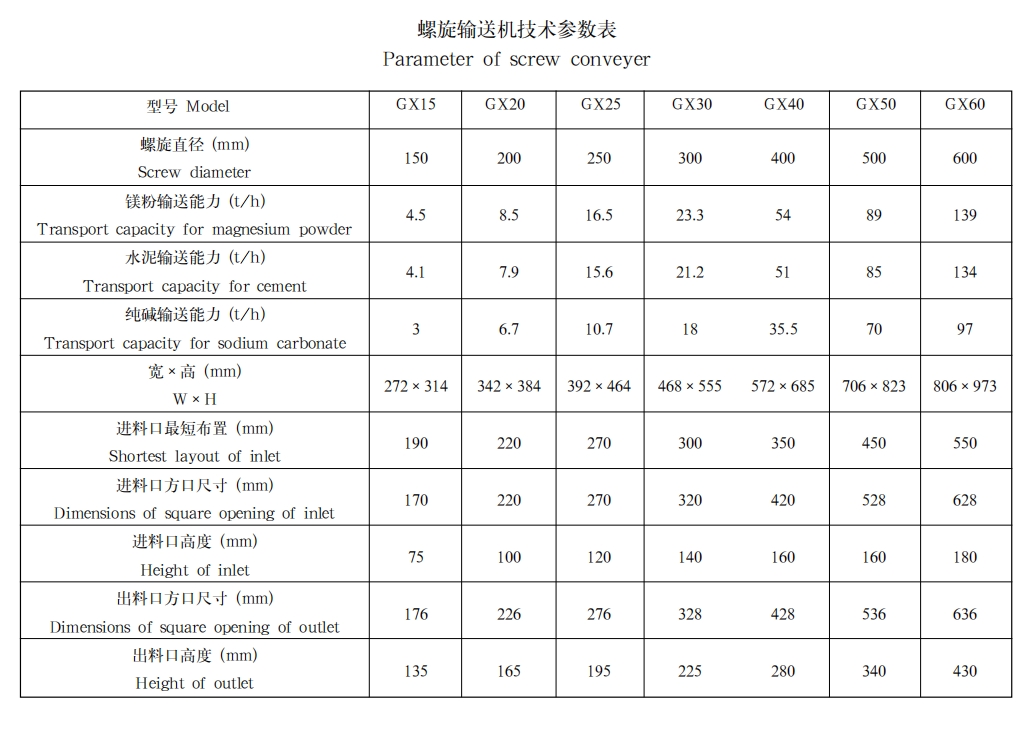

● Product parameters
