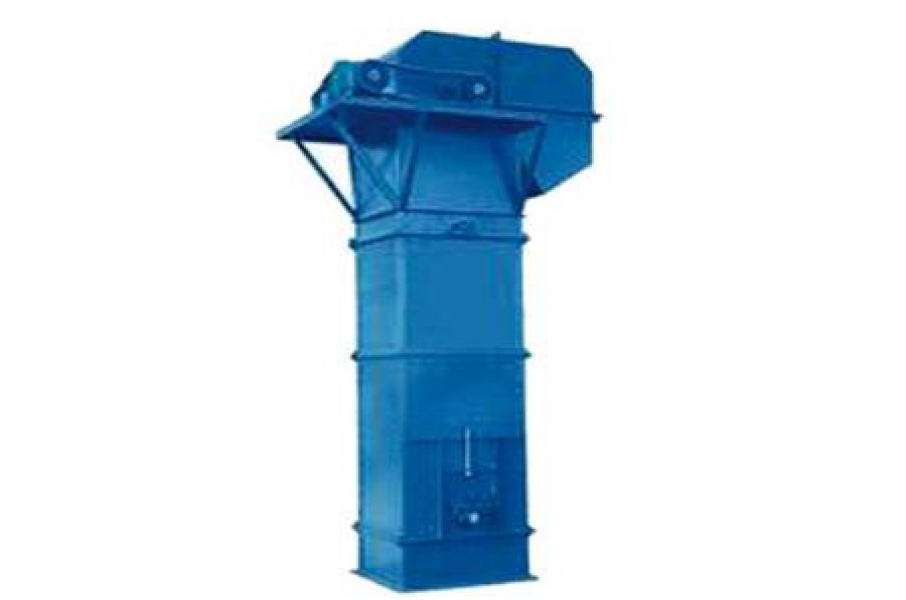

● Product Overview

A bucket elevator is a continuous conveying machinery that uses a series of hoppers uniformly attached to an endless traction component to vertically lift materials. The bucket elevator uses a series of hoppers attached to a traction chain or tape to vertically or nearly vertically transport bulk materials inward and upward. It is divided into three types: loop chain, plate chain, and belt.

【 Applicable Materials 】 Suitable for lifting from low to high, the supply material is fed into the hopper through a vibration table and the machine automatically runs continuously to transport upwards.

● Product Structure

● Working principle of the product

The hopper scoops up the material from the storage below, and as the conveyor belt or chain lifts it to the top, it flips down after passing around the top wheel. The bucket elevator pours the material into the receiving trough. The transmission belt of a bucket elevator with belt drive is generally made of rubber belt, which is installed on the lower or upper transmission drum and the upper and lower reversing drums. A bucket elevator with chain drive is generally equipped with two parallel drive chains, with a pair of drive sprockets on the top or bottom and a pair of reversing sprockets on the bottom or top. Bucket elevators are generally equipped with a casing to prevent dust from flying in the bucket elevator.

● Product advantages

Bucket elevator is a vertical material conveying equipment, which has the advantages of simple structure, low maintenance cost, high conveying efficiency, high lifting height, stable operation, and wide application range.

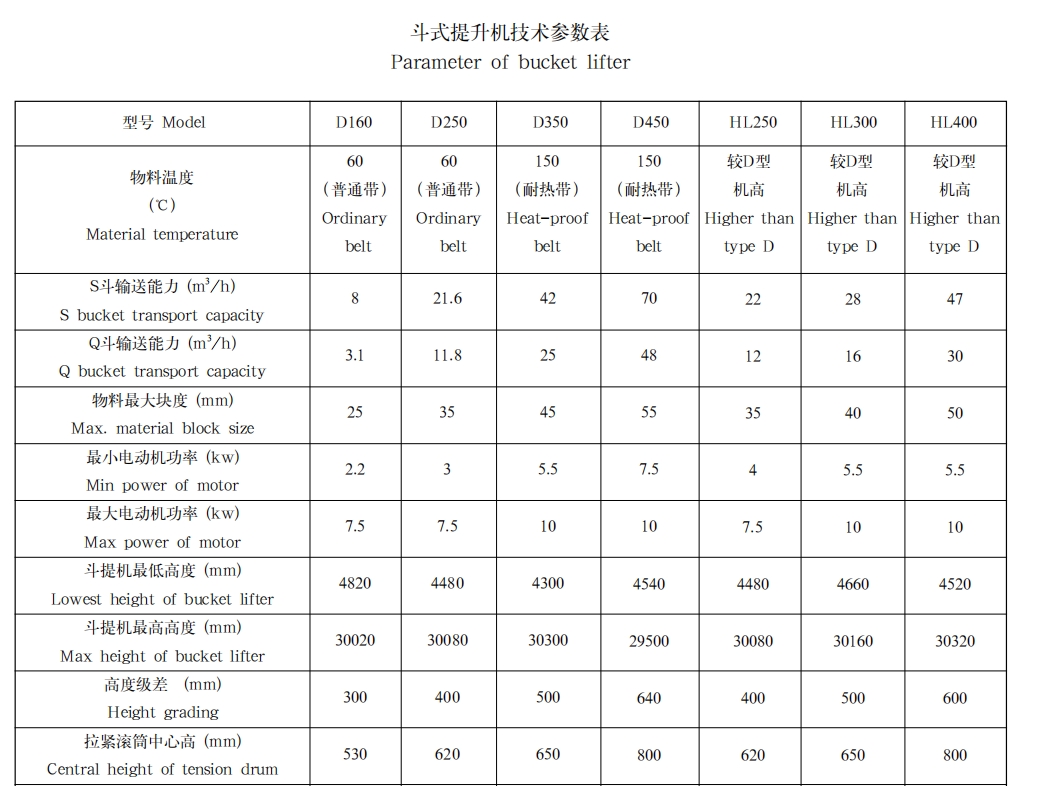

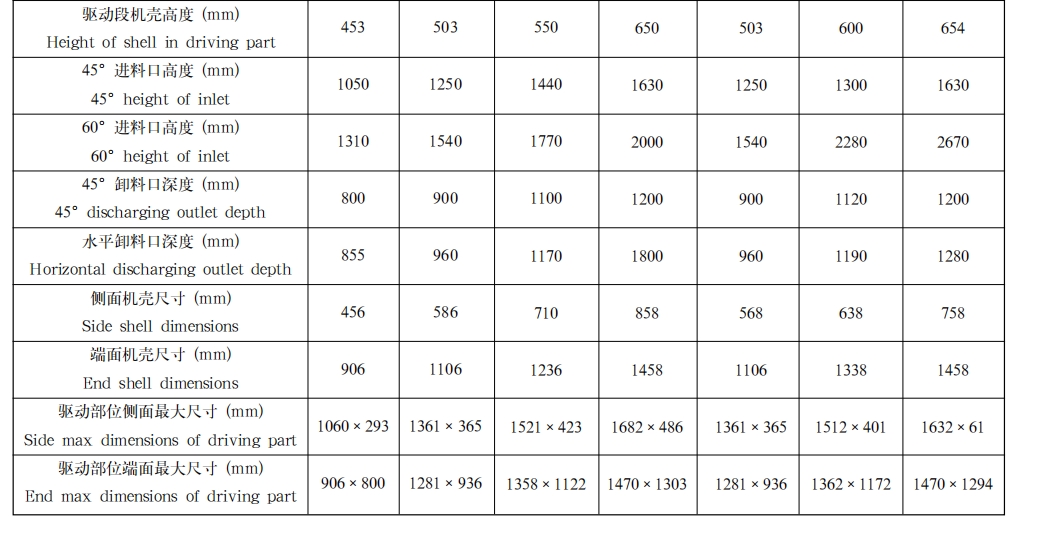

● Product parameters
