● Product Overview

The product is widely used in coal, metallurgy, building materials, grain, chemical, power and other sectors, and is applied in underground mining engineering, open-pit mining, large dump ships and other fields. It is used to transport easily scattered powder, granular, small block, paste and liquid materials.

[Applicable materials] Used for conveying easily scattered powder, granular, small block, paste, and liquid materials.

【 Conveying Capacity 】 13-794m ³/h

● Working principle of the product

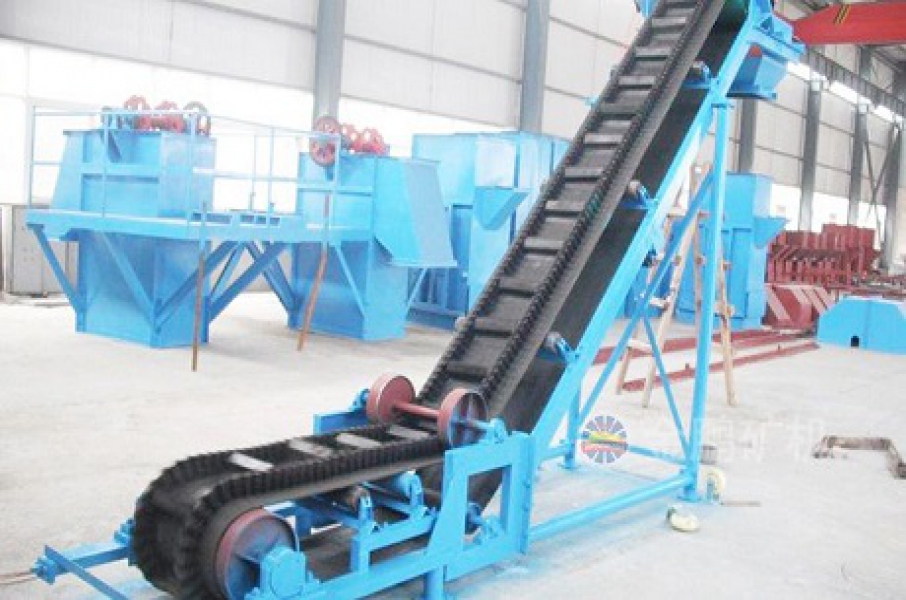

The most famous type of wavy edge conveyor belt is the high angle wavy edge conveyor belt, also known as the skirt partition conveyor belt. It consists of three parts: the base belt, the edge, and the transverse partition. The blocking edge plays a role in preventing materials from slipping and falling. To facilitate bypassing the drum, the edge is designed in a corrugated shape; The function of the transverse partition is to support the material, and in order to achieve large angle conveying, a T-shaped TC type is used. The edge and bulkhead are connected to the base tape through secondary vulcanization, which has high connection strength.

● Product advantages

1. Increase the height significantly;

2. Large angle conveying, saving floor space, reducing equipment investment and engineering costs;

When arranged vertically, it is fully enclosed, with good sealing performance, less dust, and good environmental protection effect;

4. The operation is reliable, without the frequent occurrence of chain jamming, drifting, and breakage of buried scraper conveyors, as well as the slipping and falling of bucket elevators; Smooth operation and low noise;

5. The structure is simple, and all major components can be used interchangeably with a universal belt conveyor, bringing convenience to use and maintenance.

● Product parameters

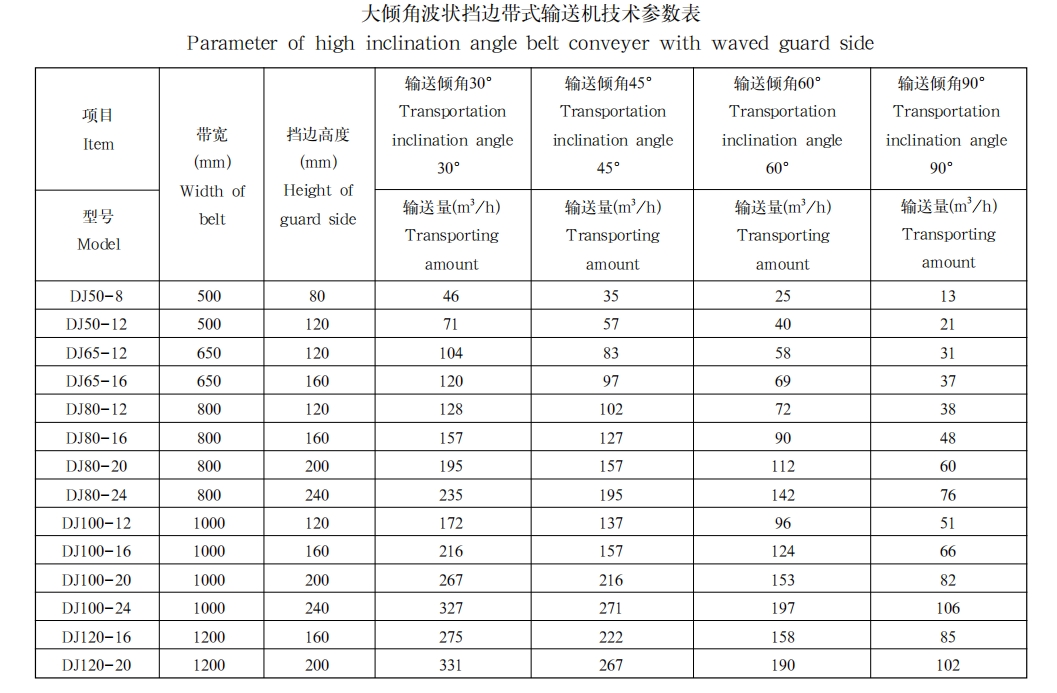

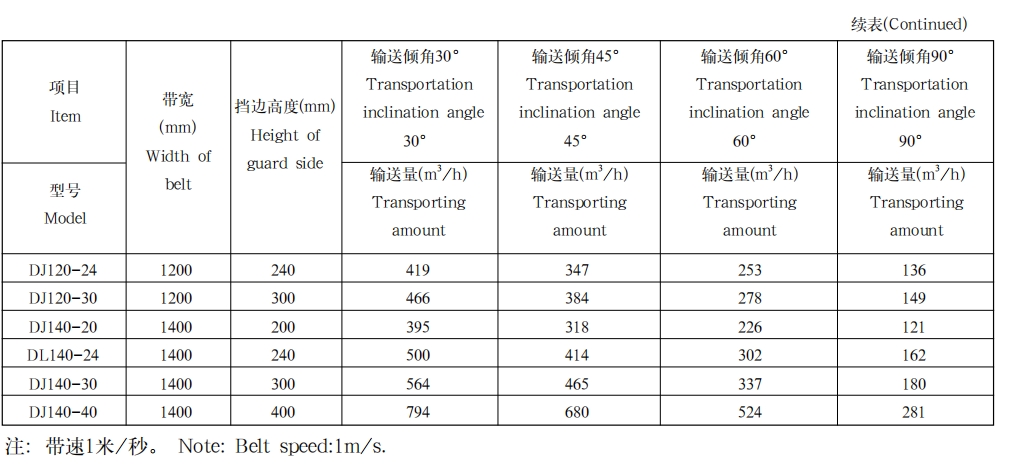

Conveyor capacity under various parameters at a belt speed of 1m/s
