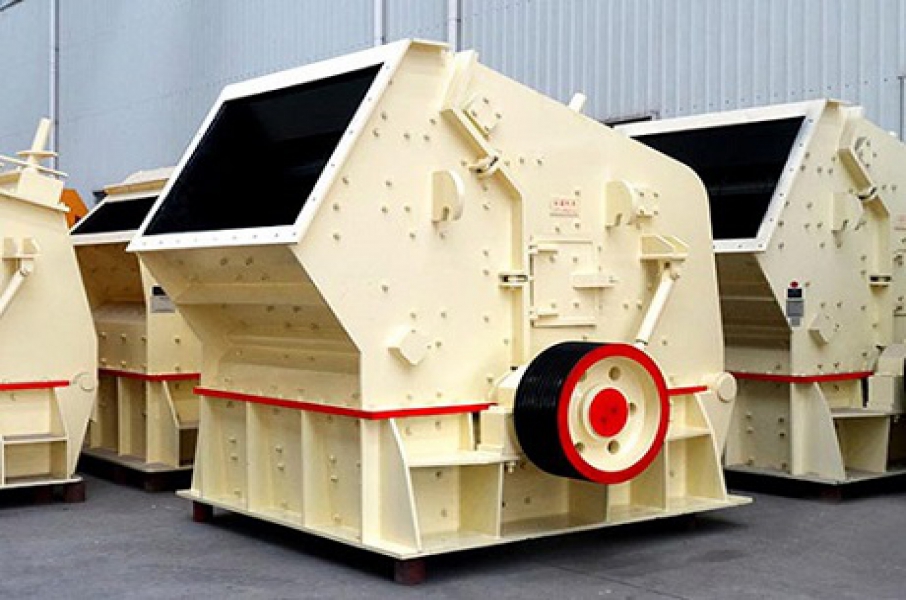

● Product Overview

The counterattack crusher is mainly used for the medium and fine crushing of ores. Its discharge particle size can be adjusted, and the crushing specifications are diverse. It has the advantages of a large crushing ratio and the crushed material is in the form of cubic particles.

Production capacity: 1-800t/h

【 Feed particle size 】 1-400mm

● Product Structure

● Working principle of the product

A counterattack crusher is a type of crushing machinery that uses impact energy to crush materials. When the machine is in operation, the rotor rotates at high speed under the drive of the electric motor. When the material enters the plate hammer action area, it collides with the plate hammer on the rotor and is crushed again. It is then thrown onto the counterattack device for further crushing, and then bounced back from the counterattack lining plate to the plate hammer action area for further crushing. This process is repeated, and the material enters the first, second, third, and counterattack chambers from large to small for repeated crushing until it is crushed to the desired particle size. It is discharged from the discharge port, and the gap between the counterattack frame and the rotor can be adjusted to change the particle size and shape of the material discharged.

● Product advantages

1. The crushing ratio is large, usually 30-40, and can reach up to 150

2. High crushing efficiency and low energy consumption.

3. The product has uniform particle size and less over crushing phenomenon.

4. It can be selectively broken.

5. It has great adaptability and can crush brittle, fibrous, and medium hard materials, especially suitable for crushing brittle materials.

6. The equipment is small in size, light in weight, simple in structure, and easy to maintain.

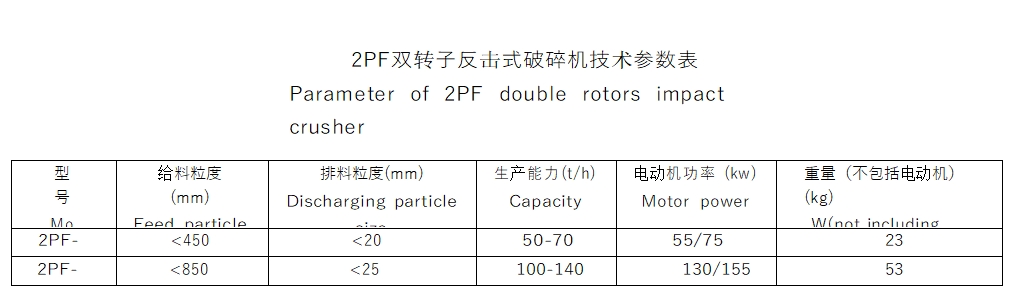

● Product parameters
