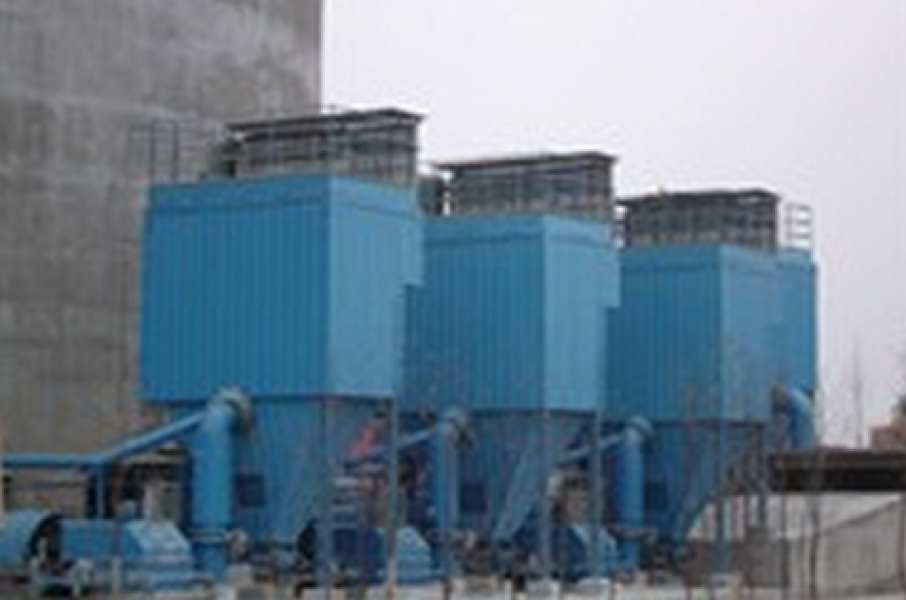

The SZD type combined electrostatic precipitator combines three complex dust collection mechanisms, namely electric cyclone, electric suppression, and electric coagulation, into a complete set, which is at the international advanced level.
The SZD combination electrostatic precipitator is suitable for industries such as building materials metallurgy, chemical engineering, and power, pollution control, and material recycling, and is used for dust collection in cement mills.
Model Description: SZD/4-1600 Type, S: The equipment category belongs to dust collection, Z: Combination electrostatic precipitator, 4: number of parallel units
1600: Simplified diameter mm
技术参数表
| 规格 | SZD-1370 | SZD/2-1370 | SZD/4-1370 | SZD/5-1370 | ZD-1600 | BZD/2-1600 | BZD/3-1600 | BZD/5-1600 |
型号 |
筒径×台数 | 1370×1 | 1370×2 | 1370×4 | 1370×5 | 1600×1 | 1600×2 | 1600×3 | 1600×5 |
主电场断面积(m2) | 1 | 2 | 4 | 5 | 1.5 | 3 | 4.5 | 7.5 |
处理风量(m3/h) | 3000-4000 | 6000-8000 | 12000-16000 | 24000-32000 | 4000-5500 | 8000-10500 | 12000-16500 | 30000-44000 |
电场风速(m/s) | 电旋风 | 1.9-2.8 | 1.9-2.8 | 1.9-2.8 | 1.9-2.8 | 2.4-3.4 | 2.2-3.3 | 2.4-3.6 | 2.36-3.2 |
电凝聚 | 0.84-1.2 | 0.84-1.2 | 0.84-1.2 | 0.84-1.2 | 0.8-1.15 | 0.74-1.1 | 0.8-1.2 | 0.8-1.2 |
允许含尘浓度(g/Nm3) | 100 |
除尘效率(％) | 99.9 |
允许烟气温度(℃) | 200大于200℃特殊定货 |
允许负压(mmH2O) | 200 |
压力损失(mmH2O) | 100 |
振打方式 | 电机振动式 |
重量(kg) | 3150 | 6374 | 9550 | 16700 | 3308 | 6615 | 9870 | 17690 |
