● Product Overview

The peripheral roller driven thickener is a peripheral driven thickener with a diameter that can reach the longest. The peripheral roller driven thickener has strong particle flocculation ability, low energy consumption, long service life, and easy automatic control. The peripheral transmission thickener is mainly used in situations with large tailings processing capacity and low product concentration, for concentrate concentration and tailings dewatering operations.

[Applicable Materials] Concentration and clarification of concentrate and tailings slurry, as well as clean coal and tailings slurry, in wet beneficiation and coal preparation operations

【 Application Fields 】 Coal, chemical, building materials, municipal, environmental protection, textile, electricity, etc

● Working principle of the product

The peripheral roller driven thickener mainly consists of two parts: a circular thickener and a rake scraper. The peripheral driven thickener concentrates the solid particles suspended in the slurry in the thickener by mixing them with flocculants, which increases the settling speed and settles under the action of gravity. The upper part obtains clarified water, and the mineral mud deposited at the bottom of the thickener is continuously scraped by the rake scraper to the discharge port for discharge. The clarified water overflows from the upper edge of the thickener, achieving solid-liquid separation.

● Product advantages

1. The peripheral transmission thickener drive is equipped with an over twist protection device, which will alarm and shut down when the set value is exceeded. The control system is flexible and the work is safer;

2. The peripheral transmission thickener adopts a peripheral transmission design, with a simple structure, low consumables, and easy automatic control;

3. Good solid-liquid separation effect, reducing sludge volume and improving sludge concentration

4. Long service life, easy maintenance, high transmission efficiency, and large processing capacity

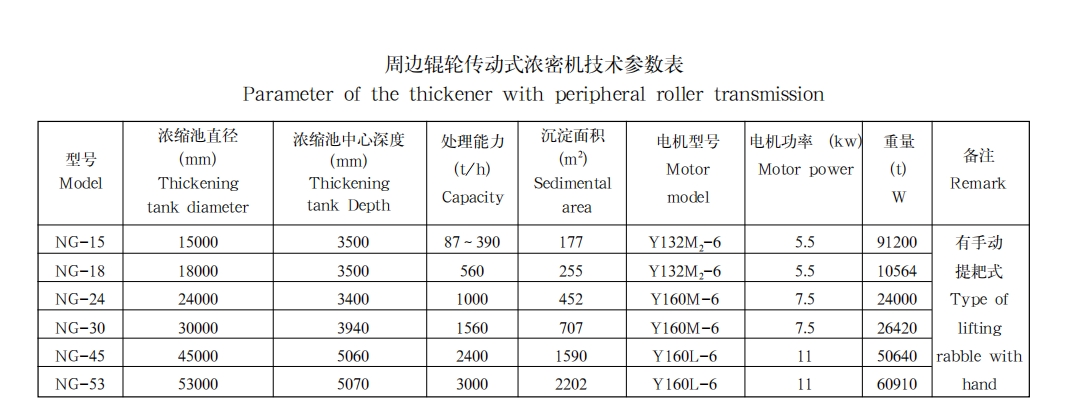

● Product parameters
