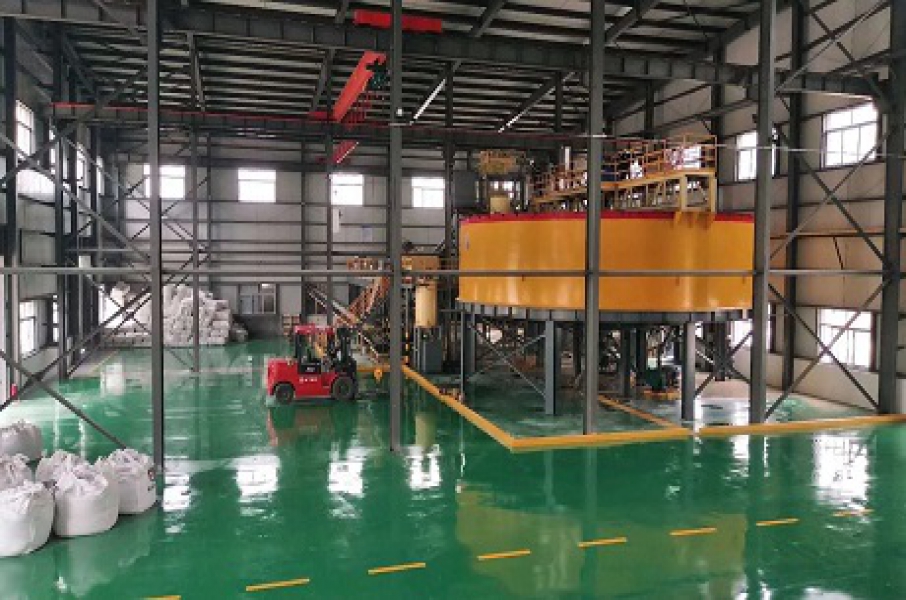

● Product Overview

The central transmission high-efficiency concentrator is mainly used for dewatering treatment of concentrate and tailings in mineral processing plants, and can also be used for dewatering, desliming, and sewage treatment operations in light chemical industry and coal preparation plants.

[Applicable materials] Coal materials, mineral mud, wastewater, waste residue, etc

【 Scope of Application 】 Treatment of mineral mud, wastewater, and waste residue in metallurgy, mining, coal, chemical, building materials, environmental protection and other departments

● Working principle of the product

The concentrator mainly consists of two parts: a circular concentrator and a rake scraper. The solid particles suspended in the slurry in the concentrator settle under the action of gravity, and the upper part becomes clarified water, allowing solid-liquid separation. The sediment deposited at the bottom of the concentration tank is continuously scraped and collected by a rake scraper to the central discharge outlet at the bottom of the tank, while the clarified water overflows from the upper edge of the concentration tank.

● Product advantages

1. Fast settling speed and large area;

2. Adding coagulants to increase the particle size of settled solid particles, thereby accelerating the settling speed;

3. Install inclined plates to shorten the settling distance of mineral particles and increase the settling area;

4. High processing capacity;

5. Utilize the coagulation, filtration, compression, and increased processing capacity of the mud sediment layer, and equip it with complete self-control facilities.

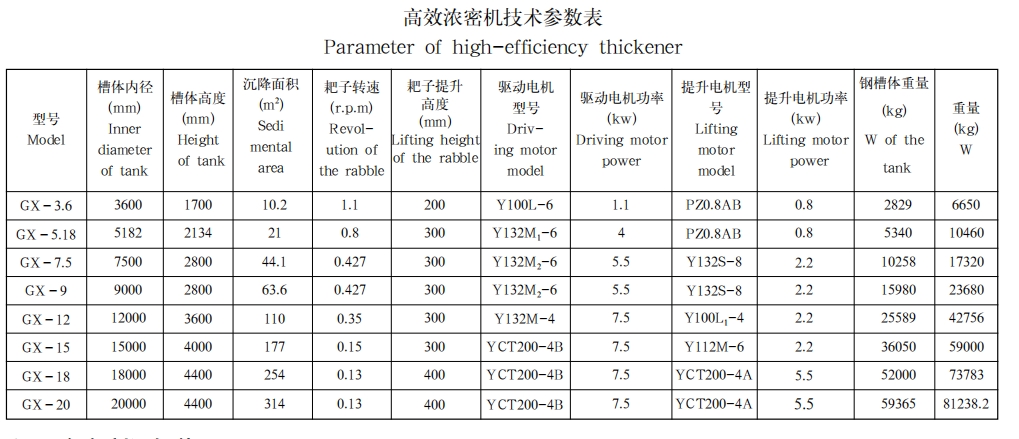

● Product parameters
