1. Efficient pre screening vibration feeding machine

● Product Overview

【 Scope of Application 】 Crushing and screening equipment for metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasives, etc

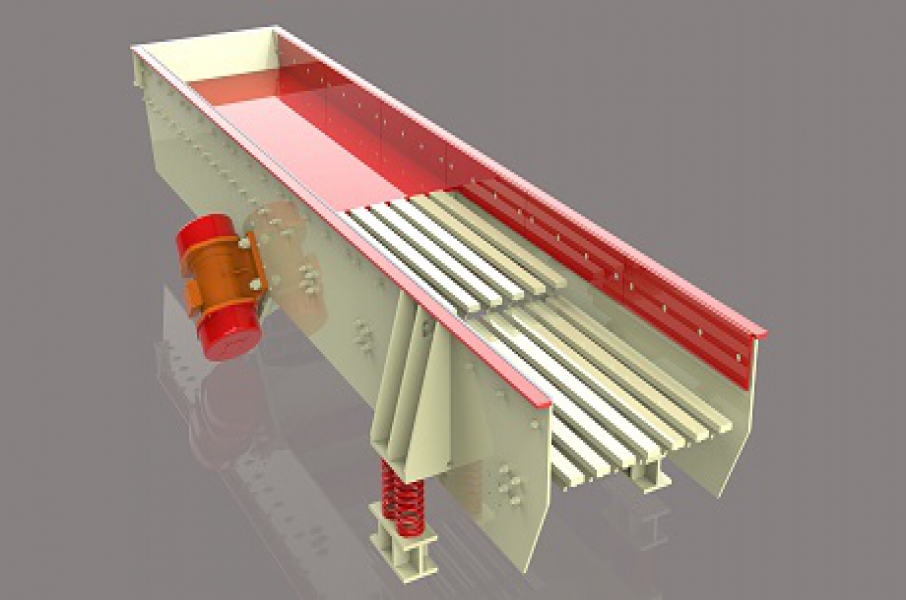

● Product Structure

● Working principle of the product

The ZSW series vibrating feeder consists of a feeding trough, exciter, spring support, and transmission device. The vibration source of the trough vibration feeding is the exciter, which is composed of two eccentric shafts (active and passive) and a gear pair. The exciter is driven by an electric motor through a V-belt to drive the active shaft, and then the passive shaft is rotated by the gear meshing on the active shaft. The active and passive shafts rotate in opposite directions at the same time, and the trough body vibrates, causing the material to flow continuously and achieve the purpose of conveying the material.

● Product advantages

1. The vibrating feeder has the advantages of simple structure, easy installation, stable vibration, reliable operation, long service life, easy maintenance and repair, and easy implementation of automatic control

2. It can provide continuous and uniform feeding for the coarse crusher, and simultaneously perform coarse screening on the materials; Gradual opening screen strips prevent clogging, and step screens are made according to the soil content of the raw ore to facilitate pre removal of soil and control of feed rate.

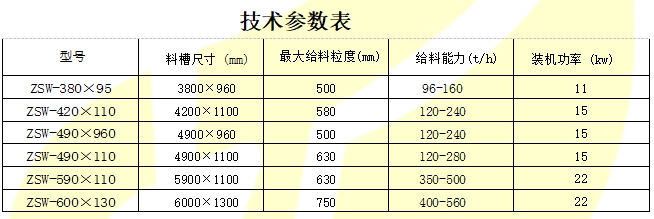

● Product parameters
