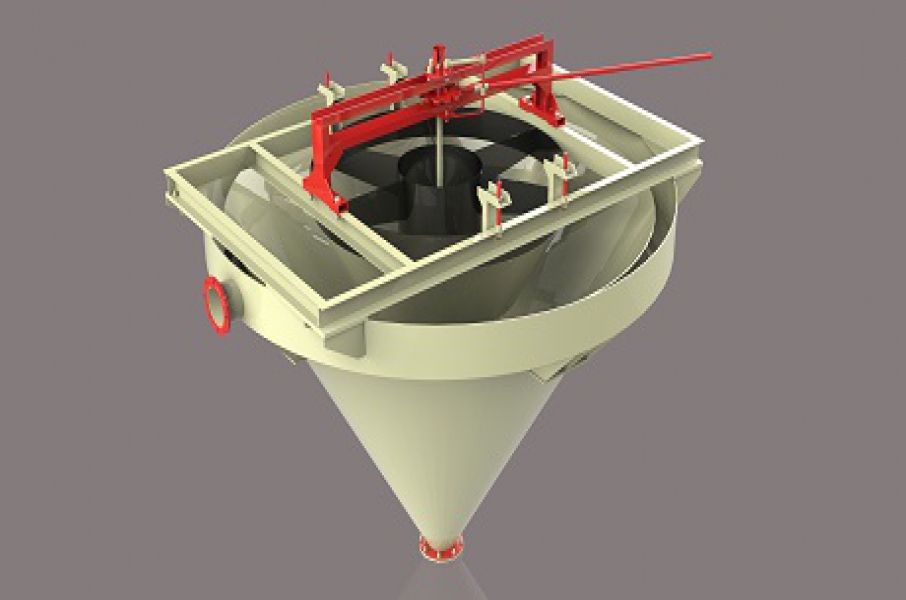

● Product Overview

The desliming bucket is a simple equipment for grading, desliming, and concentration. The desilting bucket has the advantages of simple structure, easy manufacturing, and no power consumption. Mainly applicable to ores containing mud that affect the next selection operation

。

● Working principle of the product

The slurry is fed into the central cylinder along the tangential direction and flows out from the bottom edge after buffering. The flowing slurry flows out radially towards the surrounding overflow weir. During this process, coarse particles with a settling velocity greater than the rising velocity of the liquid flow will settle in the tank and be discharged through bottom sedimentation. Fine particles enter the overflow tank with the surface slurry. The particle size of the ore is generally less than 2mm. The grading particle size is 75 μ m or finer.

● Product advantages

1. Small footprint, long settlement line, significant desilting effect,

2. Feed the central receiving cylinder along the tangent direction, buffer it with a serrated receiving cylinder, and smoothly discharge it into the hopper, ensuring a smooth desliming process,

3. By adjusting the discharge cone valve with a ratchet, it is convenient and flexible.

● Product parameters
