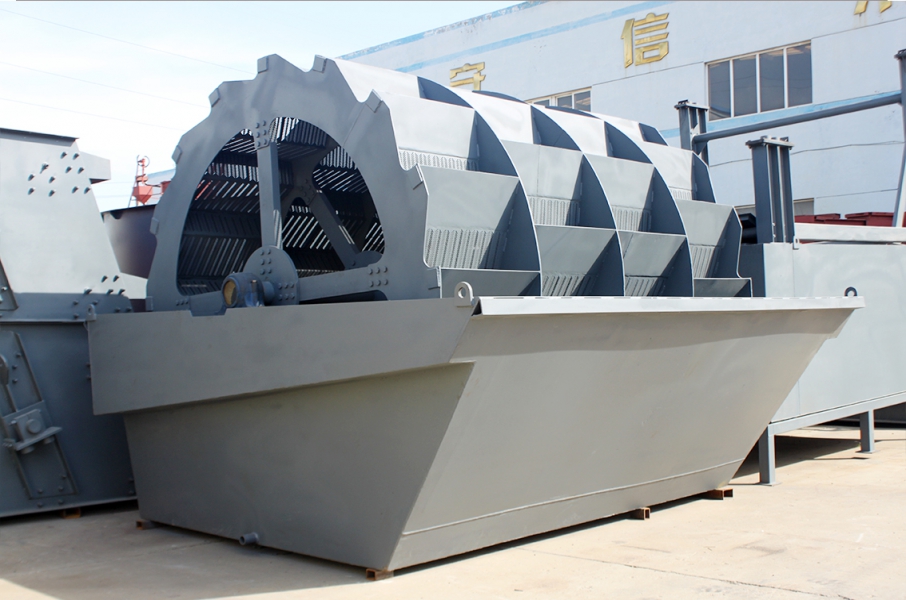

● Product Overview

Wheeled sand washing machines are widely used in industries such as metallurgy, building materials, and hydropower for washing, grading, and impurity removal. They are suitable for washing fine and coarse-grained materials. It is particularly suitable for construction sand and road construction sand.

● Working principle of the product

When the wheel sand washing machine is in operation, the motor drives the impeller to slowly rotate through a V-belt, reducer, and gear reducer. The sand and gravel enter the washing tank through a feeding groove and roll under the drive of the impeller, grinding each other to remove impurities covering the surface of the sand and gravel, while breaking the water vapor layer covering the sand particles to facilitate dehydration; At the same time, water is added to form a strong water flow, which promptly carries away impurities and foreign objects with low specific gravity, and discharges them from the overflow outlet washing tank to complete the cleaning process. Clean sand and gravel are carried away by the blades, and finally the sand and gravel are poured into the discharge chute from the rotating impeller, completing the cleaning function of the sand and gravel.

● Product advantages

1. The number of buckets and the angle of sand removal are designed using finite element analysis to ensure maximum processing capacity

2. The structure of the sand scoop is designed using finite element analysis, which is irregular in shape, with a large screen area and high cleaning rate

3. The sieve of the sand scoop is made of manganese steel plate with diamond shaped long holes, which has a long service life and high screening efficiency

4. Add an overflow weir inside the tank to ensure the recovery rate of clean sand with qualified particle size

5. The linking components are hinged, durable, and easy to operate and maintain

● Product parameters
