● Product Overview

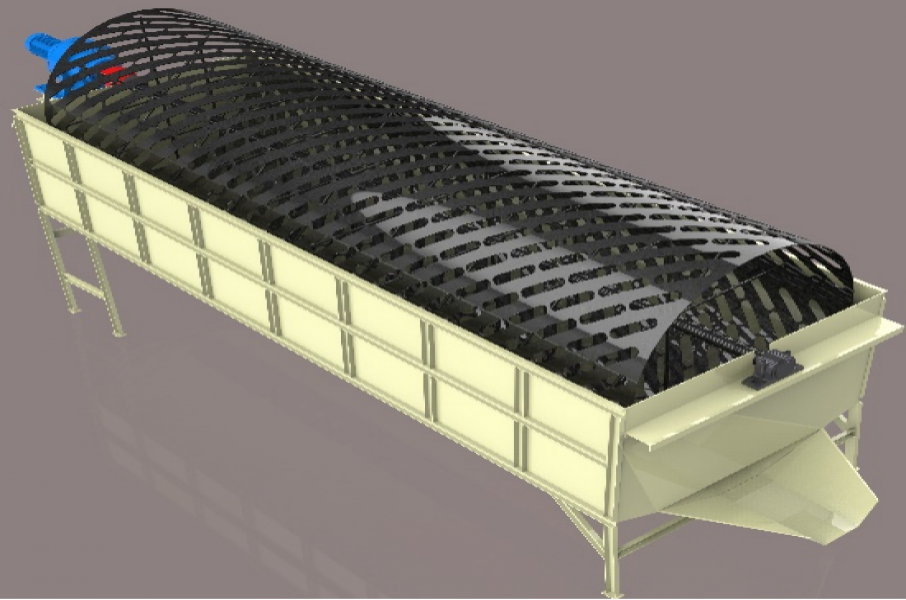

This device is widely used for various difficult to wash large ores. The washing machine is divided into two types: cylindrical and cylindrical with screening strips. The latter method can divide the washed material into two levels of products:+40mm and -40mm- 40mm can be further cleaned by a double spiral groove washing machine to divide the material into two levels of+2mm and -2mm products. The washing efficiency can reach about 98%, and this combination is the most effective method for difficult to wash ores.

● Working principle of the product

The cylinder is equipped with high-pressure water pipes, blocking rings, lifting plates, mixing teeth, etc. laid after finite element analysis. The material enters the screen and is carried to a certain height by the rotating cylindrical screen. The material falls freely and is washed with high-pressure water to fully separate the mineral sand from the mud. The screen body skeleton is made of steel designed by our company, and the screen plate is made of manganese steel plate punched to avoid hole blockage and is quenched and tempered.

● Product advantages

This machine has sufficient screening and washing, high sand production rate, simple structure, low energy consumption, reliable performance, simple operation and maintenance, easy installation and relocation, and simple process flow. It is an ideal equipment for cleaning sand and gravel aggregates.

● Product parameters
