● Product Overview

Mainly suitable for diluting and adding coagulants and flocculants in various water treatment or wastewater treatment processes such as coagulation, sedimentation, and sludge conditioning

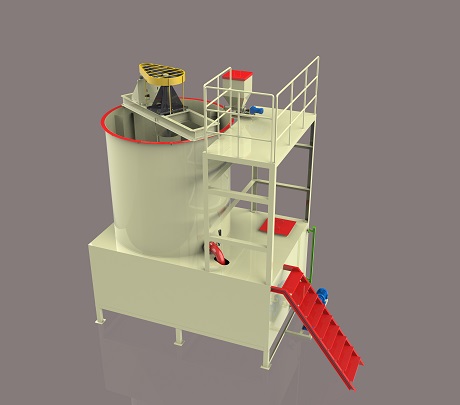

CNC flocculant configuration system

● Working principle of the product

Place the dry powder in the hopper, and according to the configured liquid concentration, the motor drives the spiral dry powder conveyor through the worm gear reducer to send out the material. At the outlet, the material and water enter the tank through the cyclone powder pre dilution device, and are fully diluted by the mixer of the mother liquid tank and dilution tank. Then, the liquid is sent to the point of use by the metering pump.

● Product advantages

1. Coagulants are commonly used additives in water treatment. Due to their high viscosity when dissolved in water, the dissolution process is often complicated and prone to clumping, which increases artificial intensity and dramatically increases the consumption of coagulants.

2. Based on this, our company has developed an automatic flocculant addition, mixing, and metering device on the basis of basic process technology;

3. This device is a fully automatic dosing system that integrates dissolution, maturation, and dosing, enabling the dosing process to be automatic, accurate, and achieve the same effect with the lowest amount of flocculant added;

4. Small footprint, high degree of automation, simple installation, and long service life.

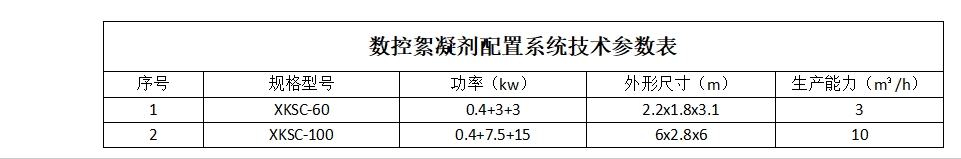

● Product parameters
