[Introduction]: High-Efficiency Slurry De-watering Machine In the company's many years of experience in fine material pulp de-watering projects, it was found t

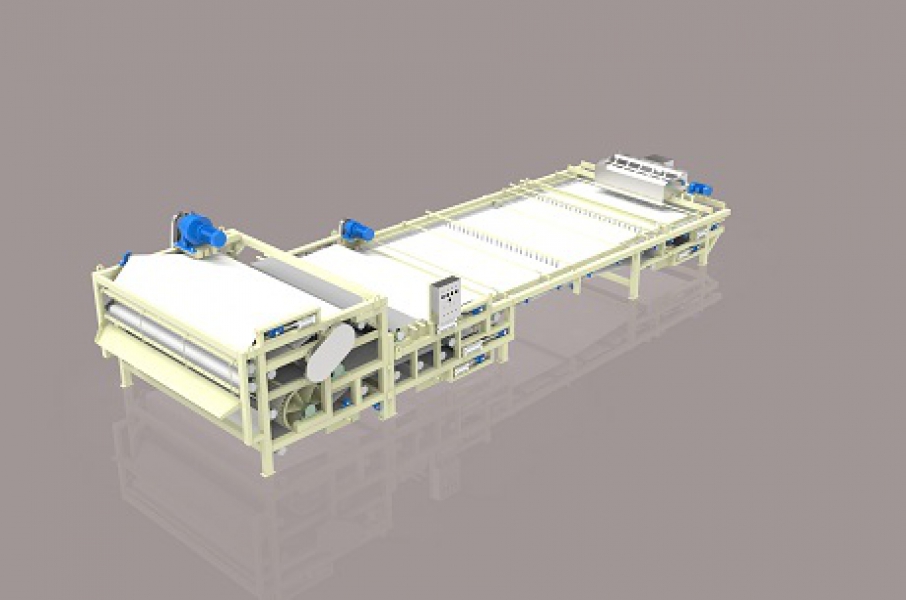

● Product Overview
The high-efficiency mud dewatering machine was discovered during our company's years of construction of fine material slurry dewatering projects. When using traditional belt vacuum filters and filter presses, it was found that once the material is fine or has a high mud content, it quickly blocks the filter hole under the action of vacuum pumping or external pressure, forming a barrier film on the surface of the filter medium, resulting in no effect regardless of the vacuum pumping force or pressure. Our company introduced advanced technology from the United States, digested and absorbed it, and successfully developed a high-efficiency dewatering equipment for fine materials, especially mud.
● Product advantages
1. Can continuously filter a large amount of materials
2. The product is made of high-strength materials
3. It has significant characteristics such as high processing capacity, high dehydration efficiency, and long service life.
● Product parameters
高效泥浆脱水机技术参数表 | ||||
规格型号 | 装机功率(kw) | 处理量 | 外形尺寸(m) | |
m³/h | t/h | |||
JYWL-2000 | 4+3+1.5 | 15-20 | 7-12 | 12.1x2.7x2 |
JYWL-2500 | 7.5+3+1.5 | 20-25 | 10-15 | 12.1x3.2x2.9 |
JYWL-3000 | 7.5+3+1.5 | 30-60 | 15-30 | 12.8x3.7x2.9 |
JYWL-3500 | 7.5+3+1.5 | 40-80 | 18-36 | 12.8x4.2x2.9 |
The high-efficiency membrane press filter uses internationally leading TPE membrane technology, feat
The flocculation effect of the slurry and the size and compactness of the flocculants directly affec
